Complete analog gauge set for Allis Chalmers gas-powered D14, D15, and D17 tractors — includes oil pressure, fuel temperature, ammeter, and tachometer gauges

Description

This listing is for a Allis Chalmers four Gauge and tachometer set.

Fits: D14, (D15 Gas up to SN: 6630), D17 Gas / LP, I-40, I-400, tractors.

Tach rotates counter clockwise. The housing diameter is 3 3/8″ (85mm)

Tachometer replaces part numbers: 229755 228818 261728 261779 234095 70242376 70276770 70277450

All these gauges and the tachometer in this listing have metal cases with Yellow Zinc “Cad” Plating for corrosion resistance protection! The four gauges have mounting studs and brackets, rubber gasket seal for mounting flush to dash with glass lens. Gauges and tach have 6 or 12V light feature included so owner has option to use or not to use. Fuel gauge has no light avail. The gauges are for 2″ Diameter 52MM dash holes. and have a White Face dial, chrome bezel.

 If you need 12 volt bulbs let me know when you pay.

Temperature gauge replaces IH part numbers: 70235724

Temperature gauge has 74″ pvc covered capillary lead.  Temperature is measured in 3 zones. 5/8-18 U.F. END W/ 1/2″ NPT PIPE BUSHING.

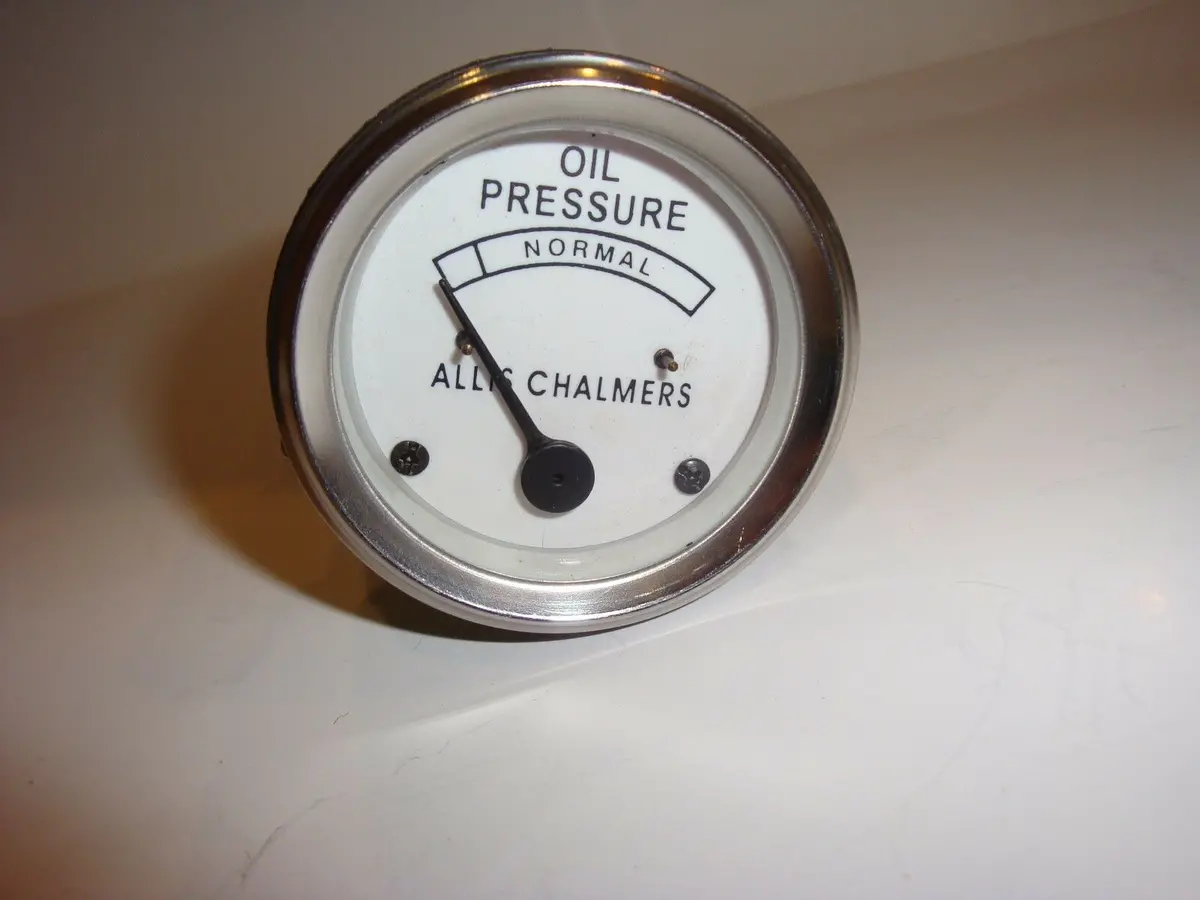

Oil pressure gauge replaces Allis Chalmers part numbers: 70228718, 70228719.

Oil gauge has 1/8″ NPT male fitting and 0 – 45 PSI range!

Amp meter gauge replaces Allis Chalmers part numbers: 70254407

Fuel gauge: 10 – 90 ohms Full

If you do not need fuel gauge with this set when you purchase, Leave me a note and I will credit your account 12.00 while I ship set.

Fuel gauge has no light avail on this model.

If you need 12 volt light bulbs let me know at time when you pay

ACTMP70235724 WF

ACO70228718 WF

ACA70254407 WF

ACFWD45D15 WF

ACTCH229755WF
