Description
Pan Depth: 7-1/2”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6Liters)
Stroke Clearance: 4.125″ (With Steel Rods, Check Crank Scraper Before Final Install)

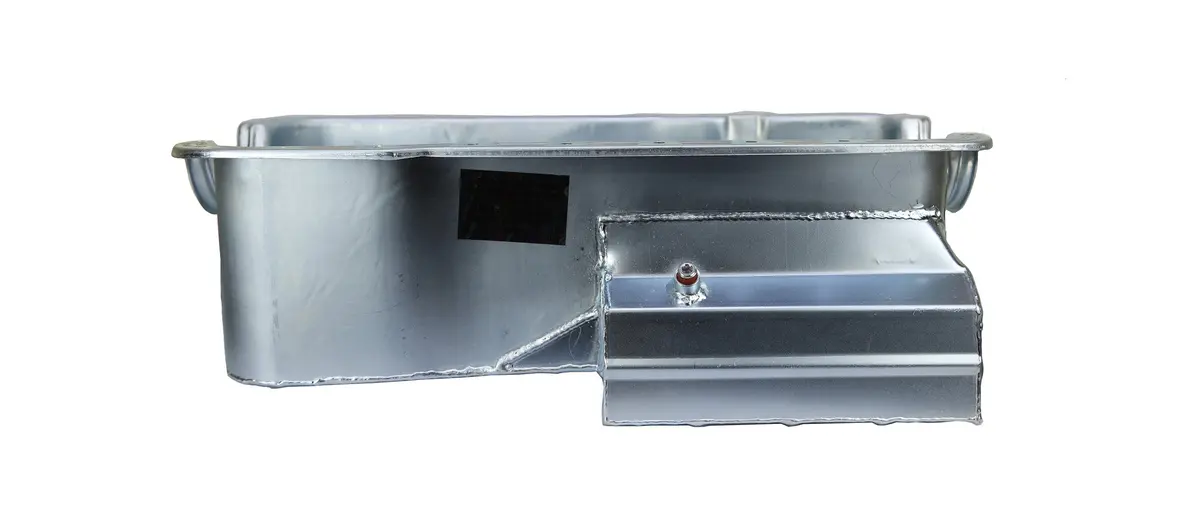

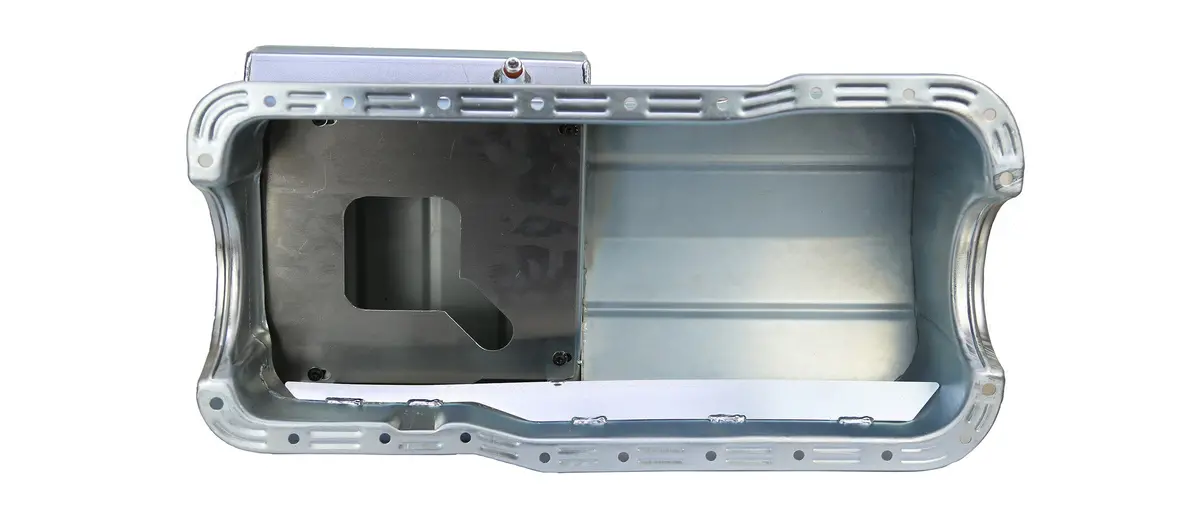

Description: This pan is 7 1/2″ deep, 10″ long, and has a 12″ wide sump. The front of the 302 (F406) is 5 1/2″ deep. The depth on the front of the 351W (F407) is 6 1/2″ deep. This pan is used for rack and pinion type steering and other Ford conversions. Does not work with Stock Starters. Fits 164 tooth Flywheel.
*Oil pans built for the SHP block are built to order and will be shipped raw, with no finish. Zinc Silver Plating is available – Call (800) 770-3557 for details.*
351W Accessories
| Part Number | Description | |
| F407-1 | 351W Pickup Tube, works with Standard and High Volume Pumps | ADD |
| F351W-S | Pickup Tube Stud for 351W (OEM Style) | ADD |
| M83 | Standard Volume Pump | ADD |
| M83HV | High Volume Pump | ADD |
| IS83 | Intermediate Oil Pump Drive Shaft | ADD |
| M-10833 | Melling Select Performance Oil Pump | ADD |
| 1810 | Fel-Pro Multi-Piece Gasket | ADD |
| OS30214T | Fel-Pro 1-Piece Gasket | ADD |
302 Accessories
| Part Number | Description | |
| F406-1 | 302 Pickup Tube-Works with Standard and High Volume Pumps | ADD |
| F201STUD | 302 Pickup Tube Support Stud | ADD |
| M68 | Standard Volume Oil Pump | ADD |
| M68HV | High Volume Oil Pump | ADD |
| IS-68 | Intermediate Oil Pump Drive Shaft | ADD |
| M-10688 | Melling Select Performance Oil Pump | ADD |
| 1809 | Fel-Pro Multi-Piece Gasket | ADD |
| OS13260T | 221-302 Ford 1-Piece Gasket | ADD |
Miscellaneous Accessories
| Part Number | Description | |
| K128-NPT | 1/4″ Universal Budget Rigid Dipstick | ADD |
| K128SS-NPT | 1/4″ NPT Stainless Steel Universal Flex Dipstick | ADD |
| K128LO-NPT | 1/4″ NPT LoKar Universal Flex Dipstick with Locking Top | ADD |
| DP-1 | Standard Drain Plug | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
| K9033 | Ford Motor Mounts | ADD |
| K9026 | Lift Plate | ADD |
