Description
Pan Depth: 7”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6 Liters)
Stroke Clearance: 4.125″ (With Steel Rods, Check Crank Scraper Before Final Install)

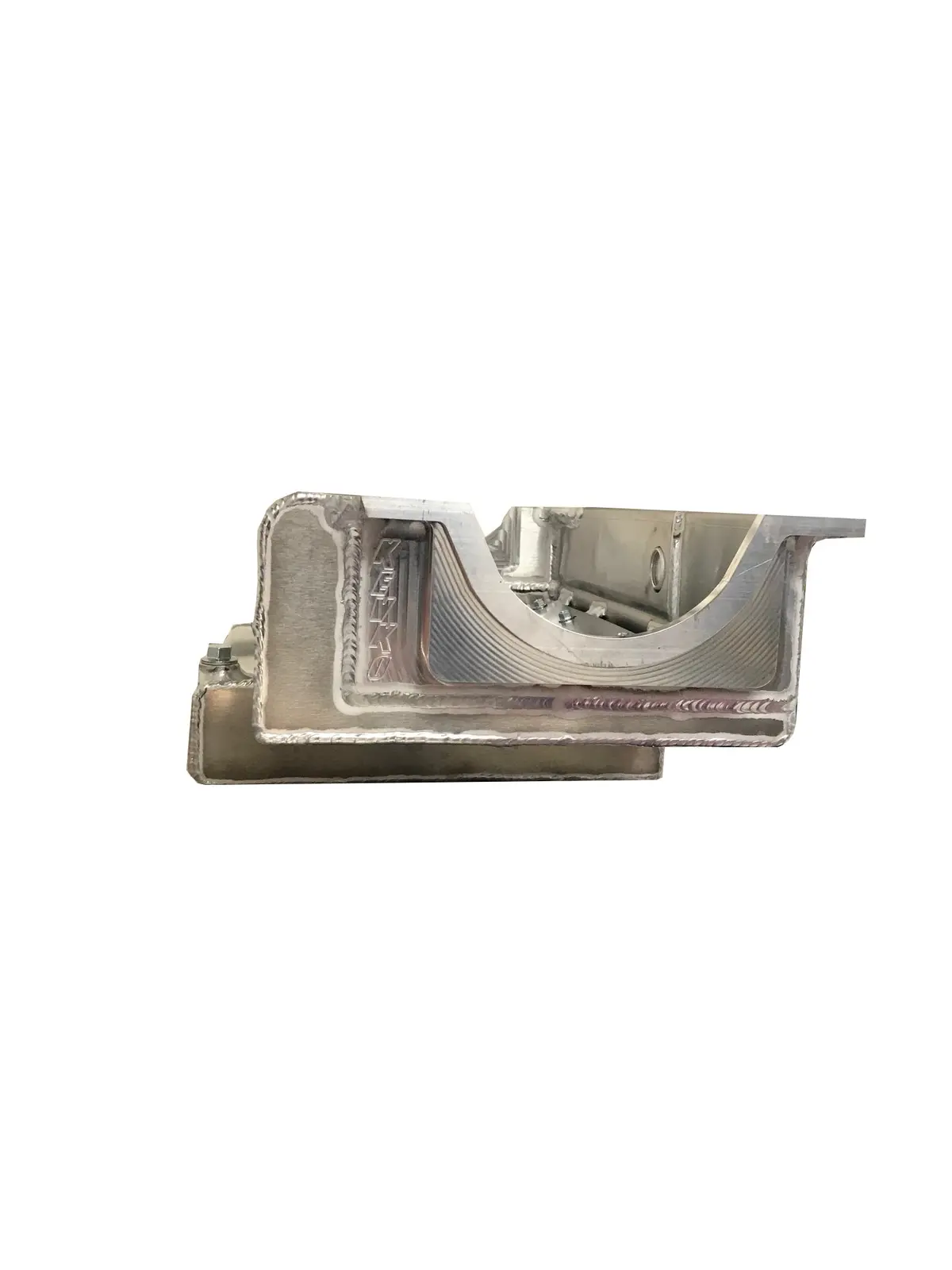

Description: This aluminum wet sump Circle Track oil pan fits the Small Block Chevrolet engines from 1957-1985 with the two piece rear main seal.
This oil pan features:
– a right side kick out that starts at the pan rail and runs the full length of the pan
– three access holes for the right side pan rail
– four trapdoors
– a louvered windage tray
– an inspection hole
– an oil check level plug
– Temp sender Port
Dimensions: 13 1/4” L x 11 3/4″ W x 7″ H
This pan requires a “Tilton Style” mini starter. Kevko #1099, MSD #5095, Tilton #54-40000, Quarter Master #114280, Stephenville #1001, Proform #66256, Powermaster #9400, Allstar #80520. There are many other starters, These are the most common.
| Oil Pump/Pickup Tube Reference | |||
| Pump | Pickup Diameter | Kevko Pickup Tube | |
| M55, M55A, 10553ST | 5/8 | 1005 | ADD |
| M155, 10554ST | 3/4 | 1005-3/4 | ADD |
| M55HV, 10550ST | 5/8 | 1006 | ADD |
| M155HV, 10551ST | ¾ | 1006-3/4 | ADD |
| 10555ST, 10552ST | ¾ Bolt On | 1006-10555 | ADD |
| M99HVS | 3/4 | 1011 | ADD |
Related Products
Pumps
| M55 | Standard Volume, Standard Pressure, 5/8″ | ADD |
| M55A | Standard Volume, High Pressure, 5/8″ | ADD |
| M155 | Standard Volume, Standard Pressure, 3/4″ | ADD |
| M55HV | High Volume, Standard Pressure, 5/8″ | ADD |
| M155HV | High Volume, Standard Pressure, 3/4″ | ADD |
| 10550ST | Performance-25% Increased Volume, High Pressure, Shark Tooth, 5/8″ | ADD |
| 10551ST | Performance-High Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10552ST | Performance-10% Increased Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10553ST | Performance-Stock Volume, High Pressure, Shark Tooth, 5/8″ | ADD |
| 10554ST | Performance-Stock Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10555ST | Performance-25% Increased Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
Gaskets
| Part # | Application | |
| 1882 |
Stroker Oil Pan Gasket (1957-1985) |
ADD |
| OS34510T |
Left or Right Hand Dipstick – 2 Piece Rear Seal (1957-1985) |
ADD |
Miscellaneous Accessories
| Part # | Description | |
| K125 | High Pressure Oil Pump Spring | ADD |
| DP-1 | Drain Plug | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
| 230-7002 | ARP Oil Pump Stud | ADD |
| IS-55E | Melling Intermediate Oil Pump Drive Shaft | ADD |
