Description
Introducing Kevko KIT PRICING!
**HUGE SAVINGS**
Pan Depth: 5″
Pan Capacity: 6 Quarts (5.7 Liters)
System Capacity: 7 Quarts (6.6 Liters)

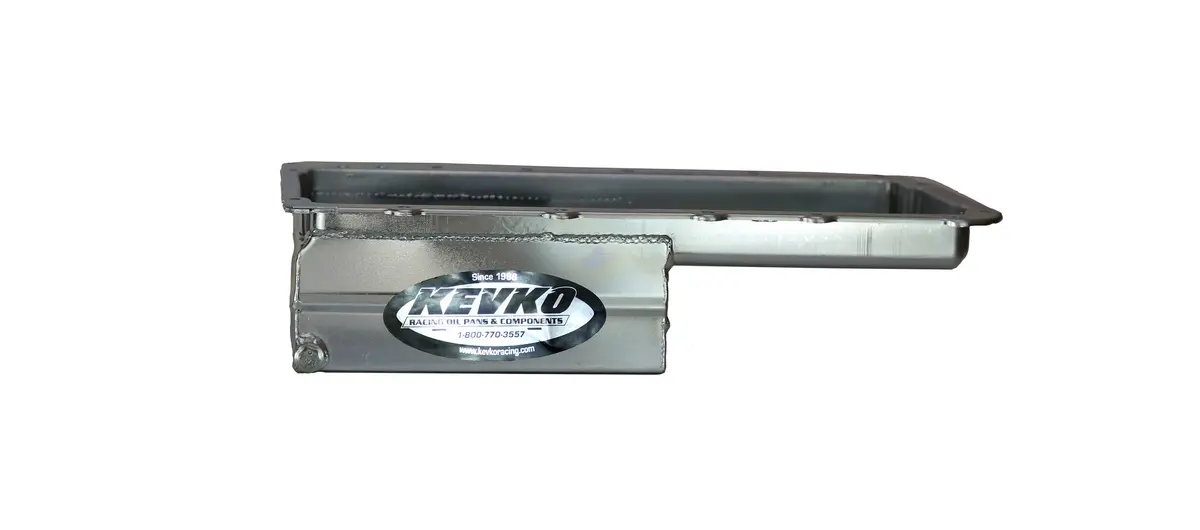

Description: 11″ Long, 8-3/8″ Wide, 5″ Deep Rear Sump. 1-3/4″ Front Depth.

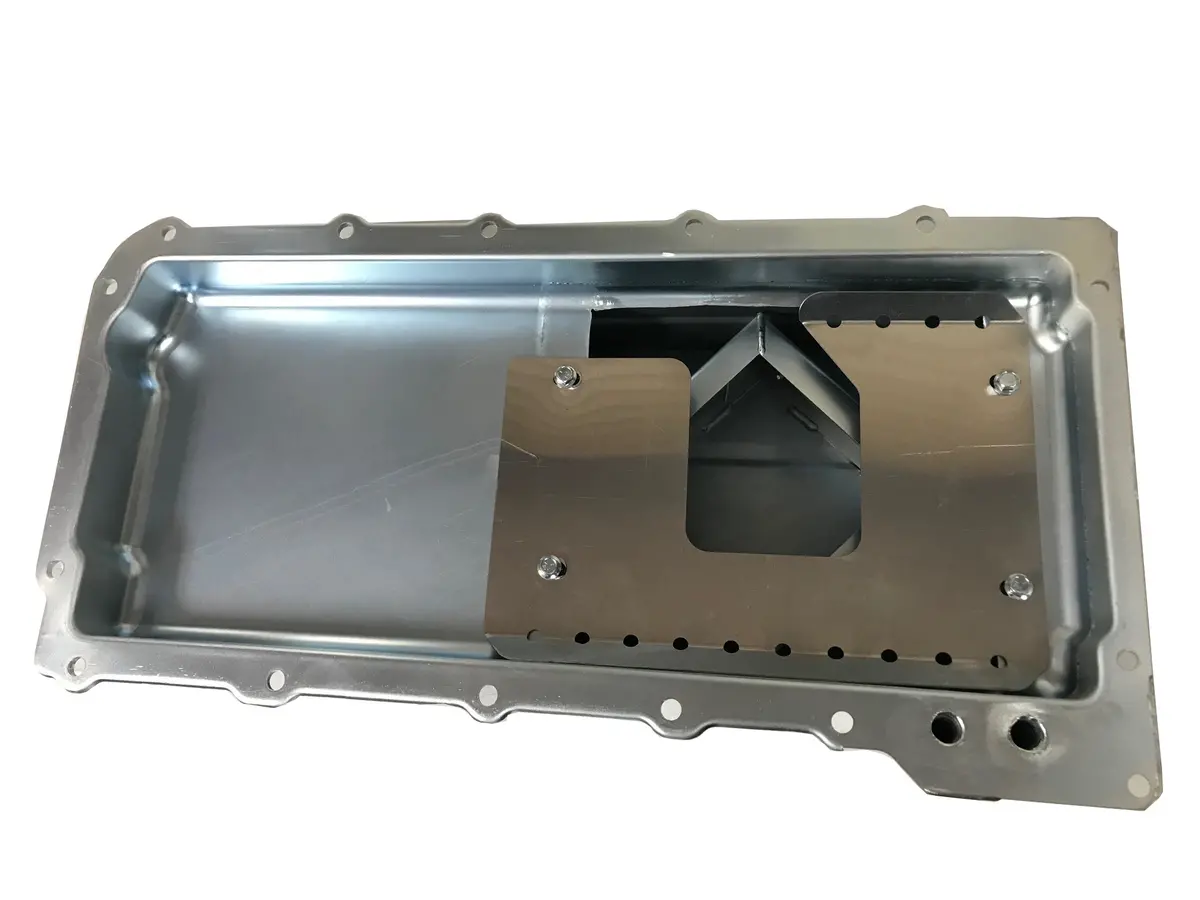

Designed for the F-Body but primarily used in the Off-Road Racing world. Features a Diamond gate design that forces oil through the center assembly regardless the angle or direction of the vehicle, for excellent oil control to the pick-up tube. Must have for any Rock Crawler or Off-Road LS project!

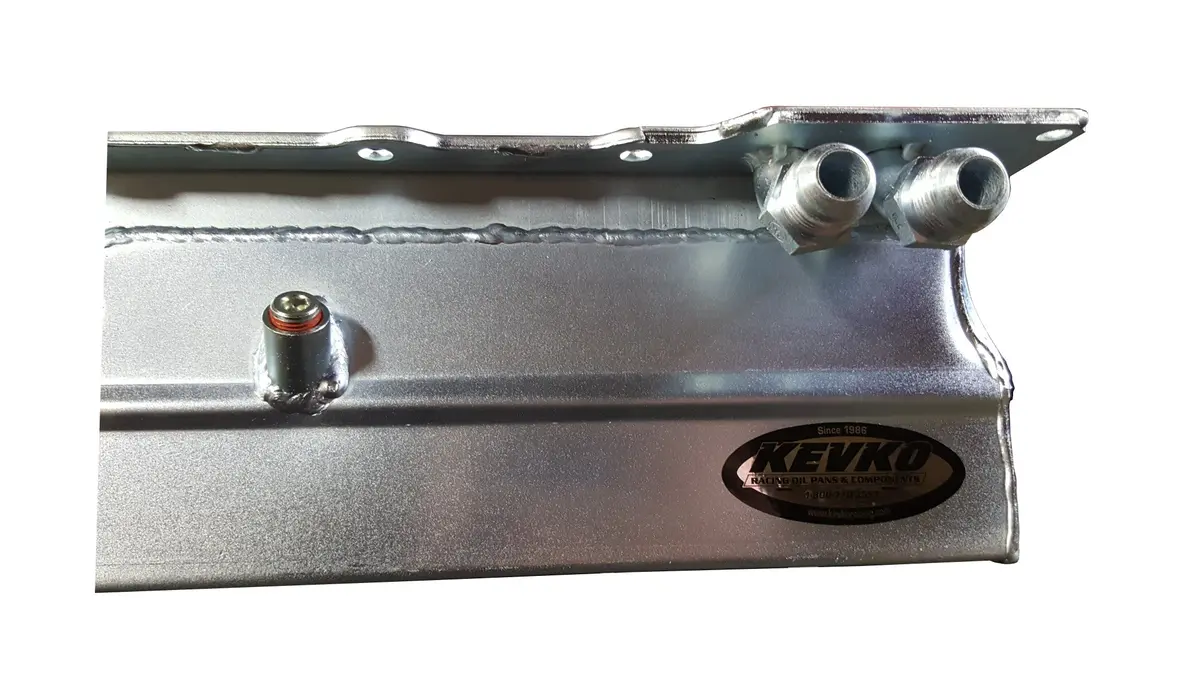

* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.

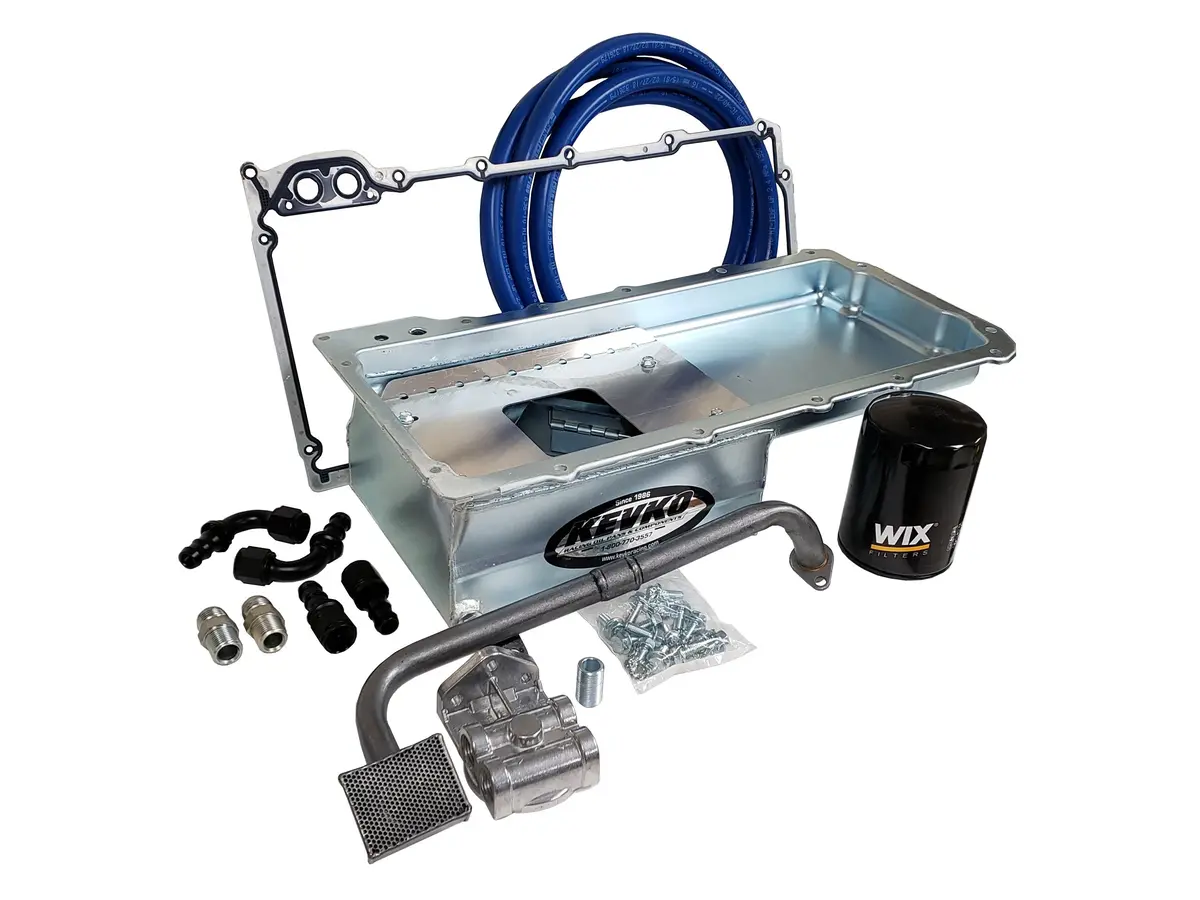

Everything listed below will be included in the “Remote Kit” With Fittings.
| Part Number | Description |
| LS1002-1 | 5″ Pickup Tube With New O-ring |
| M29500 | Melling Pickup Tube Retainer |
| K128 | Kevko Dipstick |
| K137 | LS Oil Pan Bolt Kit |
| K129 | Remote Filter Adapter |
| 51515 | Wix Oil Filter |
| K122-10-10 | 10′ Foot of Parker High Temp Hose |
| PHD-90D-10, PHD-45D-10, PHD-ST-10 | #10 Push Lock Fitting Options (4 Included) |
| OS30963 | LS Victor Reinz Oil Pan Gasket |

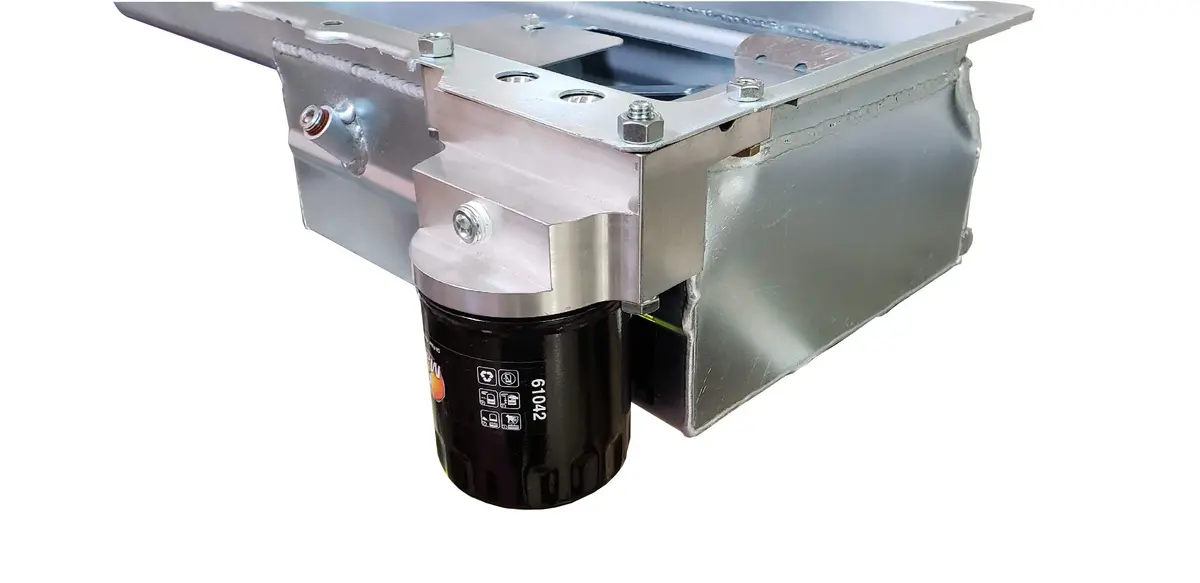

Everything listed below is included in the kit when using the Kevko K9031 “Block Mount Billet Filter Adapter” Kit
| Part Number | Description |
| LS1002-1 | 5″ Pickup Tube With New O-ring |
| M29500 | Melling Pickup Tube Retainer |
| K128 | Kevko Dipstick |
| K137 | LS Oil Pan Bolt Kit |
| K9031 | Billet Filter Adapter |
| 61042 | LS Oil Filter |
| OS30963 | LS Victor Reinz Oil Pan Gasket |
Optional Accessories
| Part # | Description | |
| K9034 | LS Motor Mounts | ADD |
| 61042 | Extra Filter for K9031 Pan Mounted Filter | ADD |
| 51515 | Extra filter for K129 Remote Filter | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
