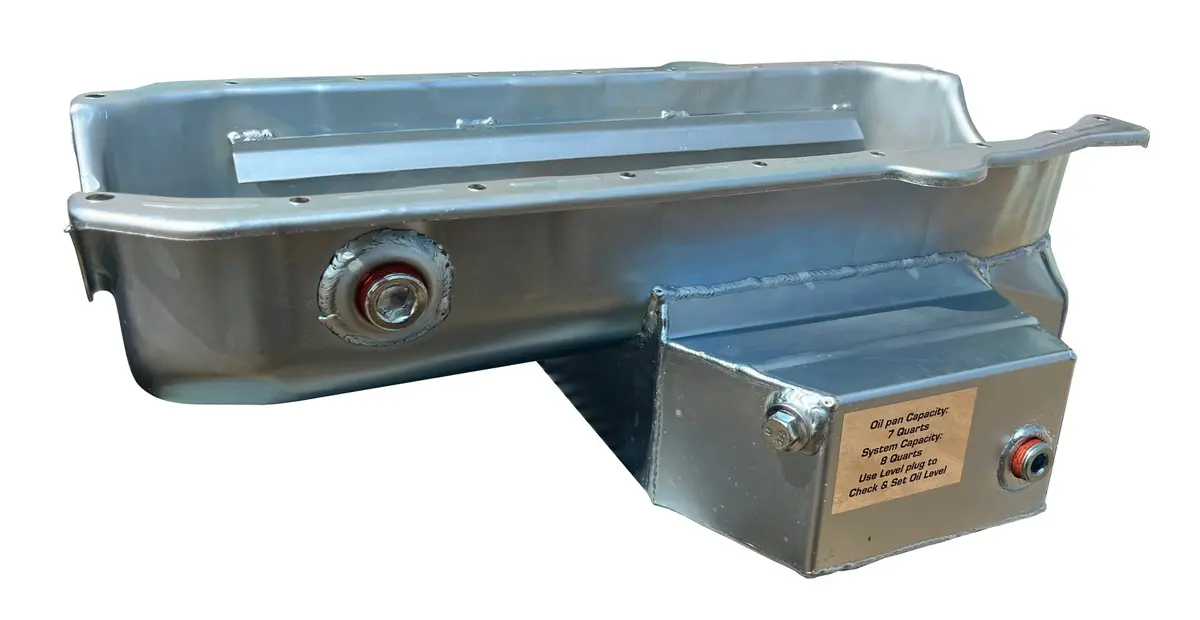

Description
Pan Depth: 7”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6 Liters)
Stroke Clearance: 4.125″ (With Steel Rods, Check Crank Scraper Before Final Install)

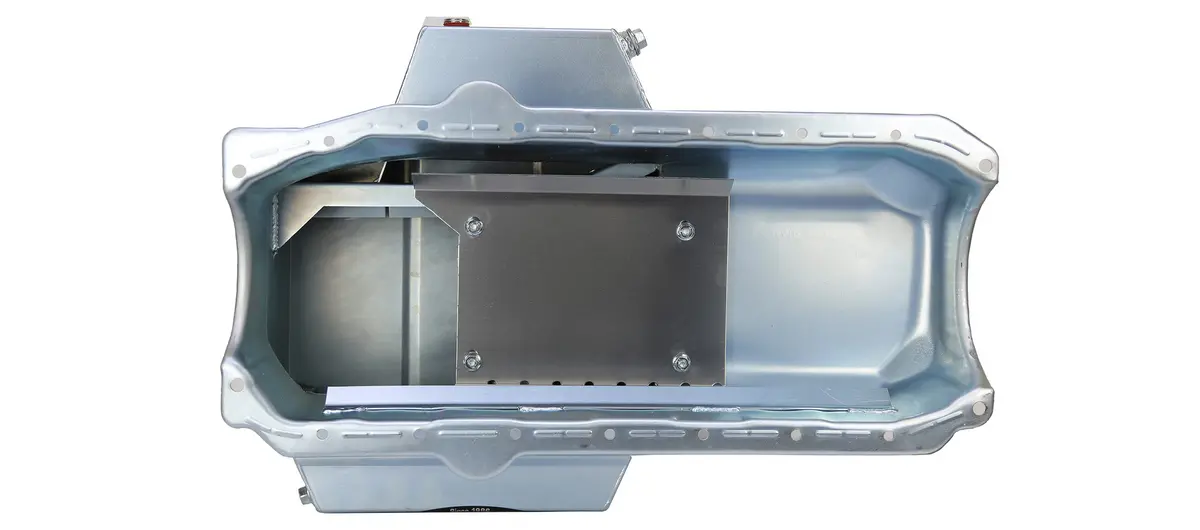

Description: 12″ long, 15″ wide sump. This pan has 6 gates, a diverter, scraper, and an oil temp fitting. Same as the 1092 without a full length windage tray.
| Oil Pump/Pickup Tube Reference | |||
| Pump | Pickup Diameter | Kevko Pickup Tube | |
| M55, M55A, 10553ST | 5/8 | 1005 | ADD |
| M155, 10554ST | 3/4 | 1005-3/4 | ADD |
| M55HV, 10550ST | 5/8 | 1006 | ADD |
| M155HV, 10551ST | ¾ | 1006-3/4 | ADD |
| 10555ST, 10552ST | ¾ Bolt On | 1006-10555 | ADD |
| M99HVS | 3/4 | 1011 | ADD |
Related Products
Pumps
| M55 | Standard Volume, Standard Pressure, 5/8″ | ADD |
| M55A | Standard Volume, High Pressure, 5/8″ | ADD |
| M155 | Standard Volume, Standard Pressure, 3/4″ | ADD |
| M55HV | High Volume, Standard Pressure, 5/8″ | ADD |
| M155HV | High Volume, Standard Pressure, 3/4″ | ADD |
| 10550ST | Performance-25% Increased Volume, High Pressure, Shark Tooth, 5/8″ | ADD |
| 10551ST | Performance-High Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10552ST | Performance-10% Increased Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10553ST | Performance-Stock Volume, High Pressure, Shark Tooth, 5/8″ | ADD |
| 10554ST | Performance-Stock Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
| 10555ST | Performance-25% Increased Volume, High Pressure, Shark Tooth, 3/4″ | ADD |
Gaskets
| Part # | Application | |
| 1803 |
Left Hand Dipstick – 2 Piece Rear Seal (1957-1979) |
ADD |
| OS34510T |
Left or Right Hand Dipstick – 2 Piece Rear Seal (1957-1985) |
ADD |
| 1818 | Right Hand Dipstick – 2 Piece Rear Seal (1980-1985) | ADD |
| OS34500R | Right Hand Dipstick – 1 Piece Rear Seal (1986-Up) | ADD |
Miscellaneous Accessories
| Part # | Description | |
| K120 | Oil Pan Bolt Kit | ADD |
| K200 | Oil Pan Support Rails (57-79 LH Dipstick) | ADD |
| K125 | High Pressure Oil Pump Spring | ADD |
| DP-1 | Drain Plug | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
| 230-7002 | ARP Oil Pump Stud | ADD |
| IS-55E | Melling Intermediate Oil Pump Drive Shaft | ADD |
