Vintage-compatible temperature and oil pressure gauge set for Farmall International Harvester tractors—fits models W-4, W-9, and T-6 manufactured between 1939 and 1946.

Description

Fits Farmall / IH Tractors: H, M, W4-9 Series, T6, I, O

(1936 – 1946 Early )

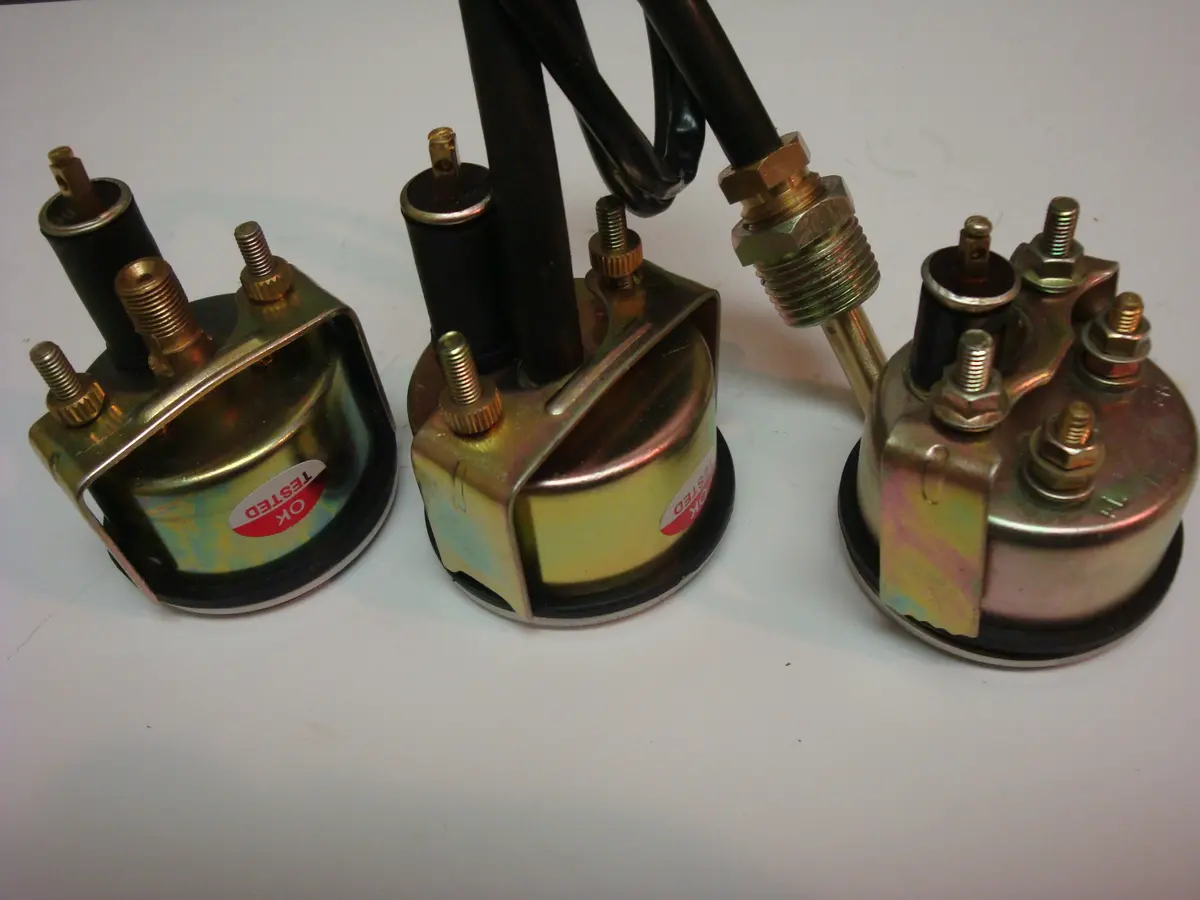

These gauges have Yellow Zinc “Cad” Plating for corrosion resistance protection! This oil gauge also has 1/8″ brass NPT male thread, all three gauges have mounting studs and brackets, rubber gasket seal for mounting flush for dash mounting. Gauges have CIH logo on dials, oil gauge has dial with red and white zones. Gauges have a 6 or 12 V bulb & holder included so owner has option to use or not to use All three gauges fit in a dash opening of 2″ / 52mm,

Temperature gauge replaces IH part numbers: 53619DB, 63783D

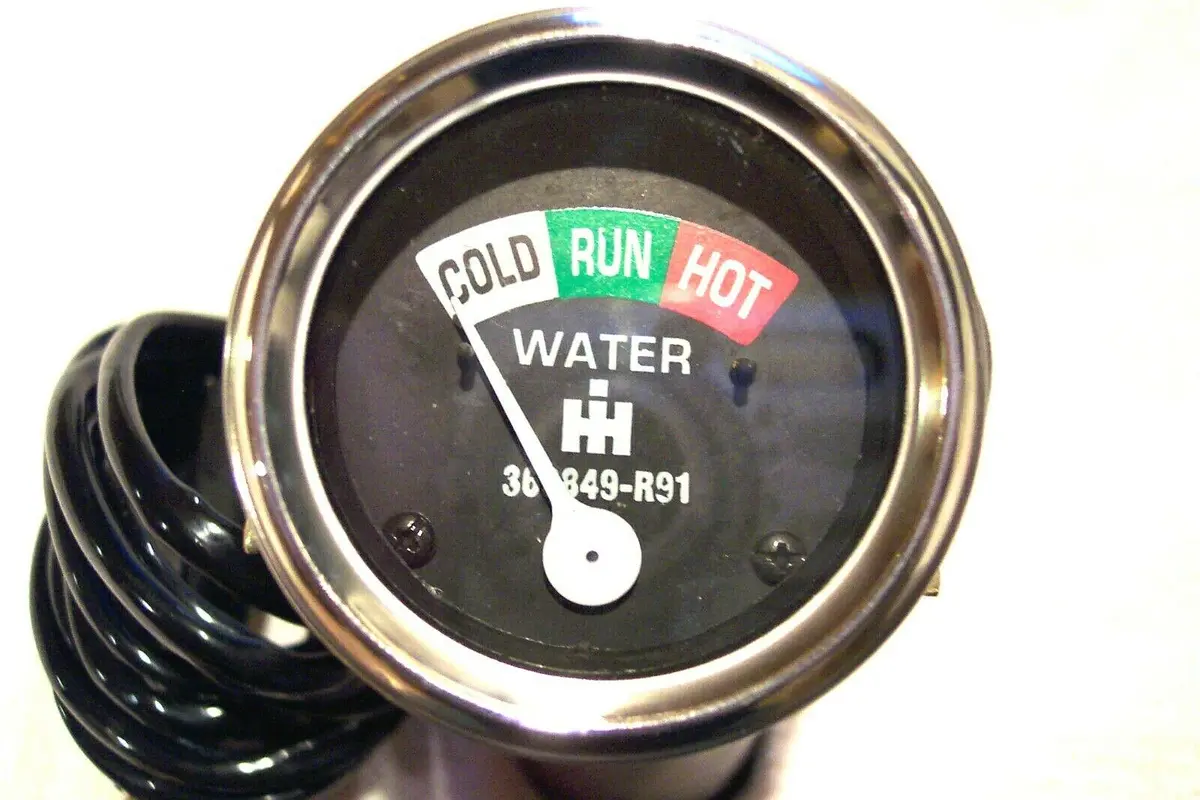

Temperature gauge has a 19″ lead. Temperature is measured in 3 zones. Black face with white lettering and colored zones to gauge temperature. 5/8-18 U.F. END with 1/2″ brass NPT pipe bushing.

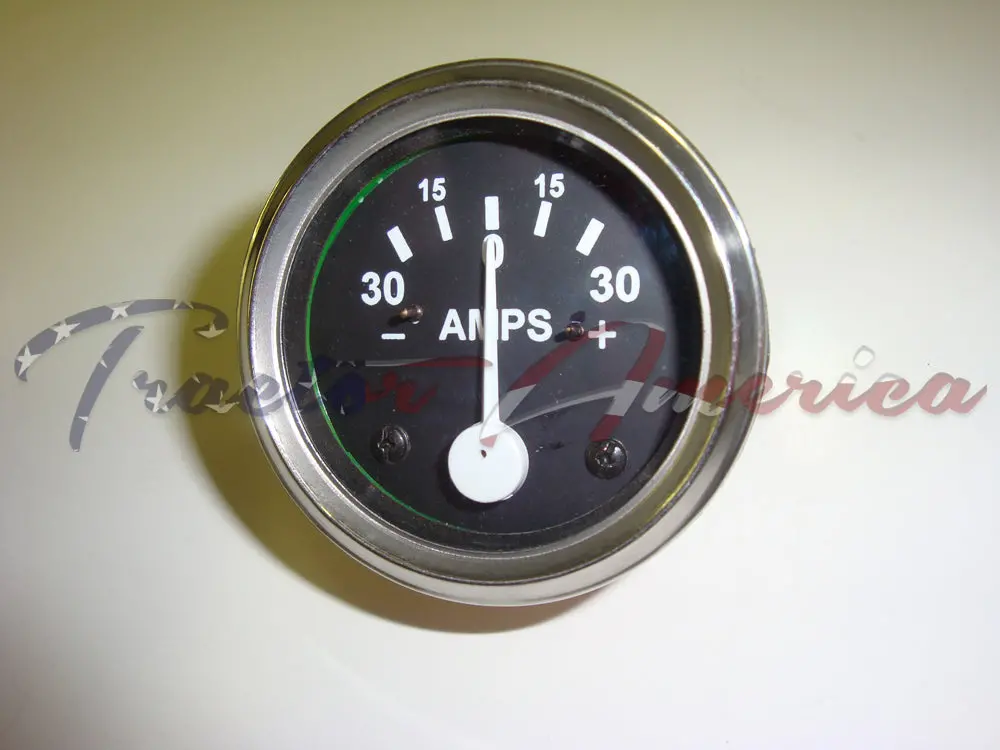

Amp meter gauge replaces IHC part numbers: 42383DC

Gauge factory specs were / are -20  0 +20 amps.

Oil gauge replaces IH part number 43987 DB,

with stud mount and bracket.

I also sell a new Farmall / IH 1/4″ OD Copper Oil Line Kit from engine block to gauge for fast hook up!

Let me know if you need 6 or 12 volt bulb(s) at time of payment.

Disclaimer:

Tractor America parts listed are Aftermarket parts and not manufactured by the (OEM) Original Equipment Manufacturer. Original manufacturers names, logos, part descriptions and numbers are for reference purpose only. This does not intend, indicate and or suggest that our parts are manufactured by the original equipment manufacturer(s).


All Tractor America Aftermarket listed parts are “Compatible with” will “Fit” and or made “For”:  Farmall, IH, International Harvester, Ford, Allis Chalmers, Massey Ferguson, Massey Harris, Oliver, Cockshutt, Minnieapolis Moline, Willys, MB, jeep, Case-IH, Case, David Brown, John Deere, JD, Kubota, New Holland, NH, Avery, Long, White, Perkins, Volvo, Oregon, Leyland, Iveco, Fiat, Honda, Exmark, Stihl, K&N, MTD, Scag, Wright MFG., Murray, Wizard, Western Auto, Troy Built, Rally, Cub-Cadet, Ariens, Atlas, Techumseh, Husqvarna, Bobcat, E-Z-Go, AYP, Fiat Hesston, NGK, Champion,  Hinomoto, Deutz Allis, GM, Chevrolet, Craftsman, Poulan, Mitsubishi, Uniiversal, McCormick, CNH, MTD, Yanmar.

IHTMP53619DB19

IHO43987DBCIHSM

IHA42383DCCIH
