Description
Pan Depth: 7-1/2”
Pan Capacity: 9 Quarts (8.5 Liters)
System Capacity: 10 Quarts (9.5 Liters)
Stroke Clearance: 4.125″ (With Steel Rods, Check Crank Scraper Before Final Install)

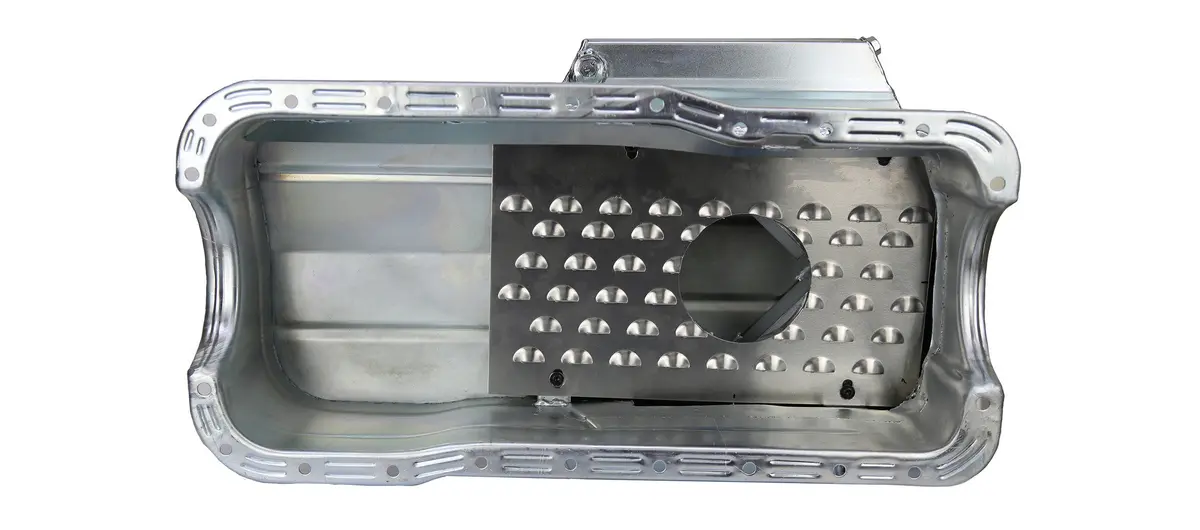

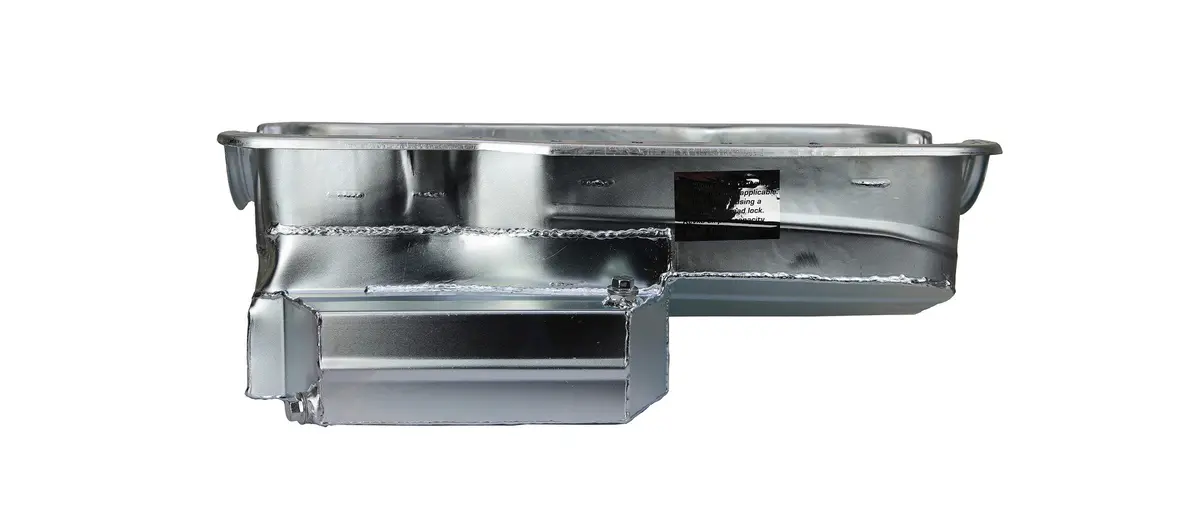

Description: This pan is kicked out on both sides. The sump measures 12″ long, 14″ wide, 7 1/2″ deep. There are 5 gates, a diverter, full windage tray and a crank scraper. Oil temp fitting, oil level plug, zinc plated. The front of the 351W pan is 6 1/2″ deep, and the front of the 302 pan is 5 1/2″ deep.
*Oil pans built for the SHP block are built to order and will be shipped raw, with no finish. Zinc Silver Plating is available – Call (800) 770-3557 for details.*s.*
351W Accessories
| Part Number | Description | |
| F202-1RR | 351W Pickup Tube, works with Standard and High Volume Pumps | ADD |
| F351W-S | 351W OEM Style Ford Pickup Tube Stud | ADD |
| M83 | Standard Volume Pump | ADD |
| M83HV | High Volume Pump | ADD |
| IS83 | Intermediate Oil Pump Drive Shaft | ADD |
| M-10833 | Melling Select Performance Oil Pump | ADD |
| 1810 | Fel-Pro Multi-Piece Gasket | ADD |
| OS30214T | Fel-Pro 1-Piece Gasket | ADD |
302 Accessories
| Part Number | Description | |
| F201-1RR | 302 Pickup Tube-Works with Standard and High Volume Pumps | ADD |
| F201STUD | 302 Pickup Tube Support Stud | ADD |
| M68 | Standard Volume Oil Pump | ADD |
| M68HV | High Volume Oil Pump | ADD |
| IS-68 | Intermediate Oil Pump Drive Shaft | ADD |
| M-10688 | Melling Select Performance Oil Pump | ADD |
| 1809 | Fel-Pro Multi-Piece Gasket | ADD |
| OS13260T | 221-302 Ford 1-Piece Gasket | ADD |
Miscellaneous Accessories
| Part Number | Description | |
| K128-1/2 | Standard Kevko 1/2-20 Universal Dipstick | ADD |
| K128-LO-1/2 | Lo-Kar Polished 1/2-20 Locking Top Universal Dipstick | ADD |
| K128-SS-1/2 | Kevko Polished Stainless Steel 1/2-20 Universal Dipstick | ADD |
| DP-1 | Standard Drain Plug | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
| K9033 | Ford Motor Mounts | ADD |
| K9026 | Lift Plate | ADD |
