Description
Pan Depth: 5″
Pan Capacity: 6 Quarts (5.7 Liters)
System Capacity: 7 Quarts (6.6 Liters)
Description: 11″ Long, 8-3/8″ Wide, 5″ Deep Rear Sump. 1-3/4″ Front Depth.

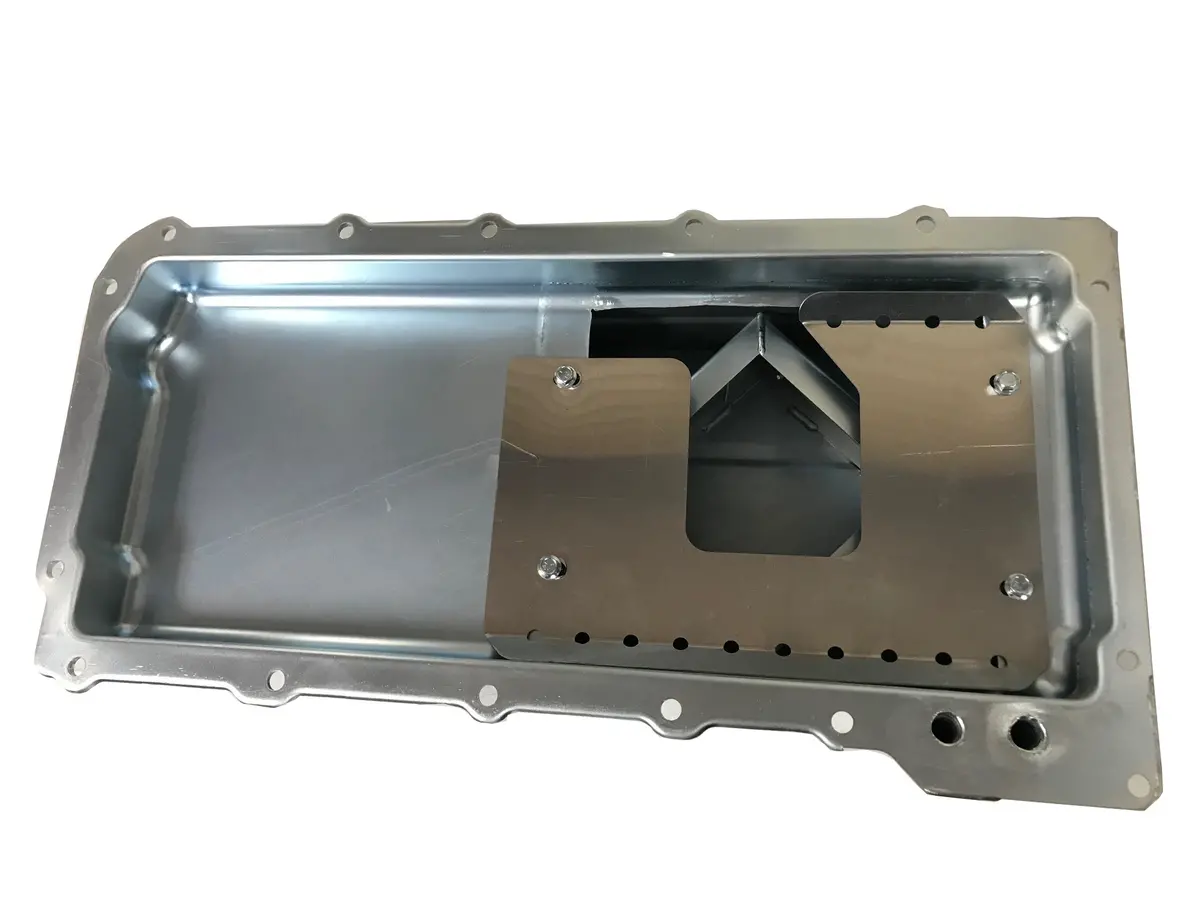

Designed for the F-Body but primarily used in the Off-Road Racing world. Features a Diamond gate design that forces oil through the center assembly regardless the angle or direction of the vehicle, for excellent oil control to the pick-up tube. Must have for any Rock Crawler or Off Road LS project!
K137 Bolt kit and K128 Dip-stick are included with the purchase of the Pan. You will need to purchase Kevko pickup tube LS1002-1 separate, as well as any other accessories listed below that you might need to complete your install.

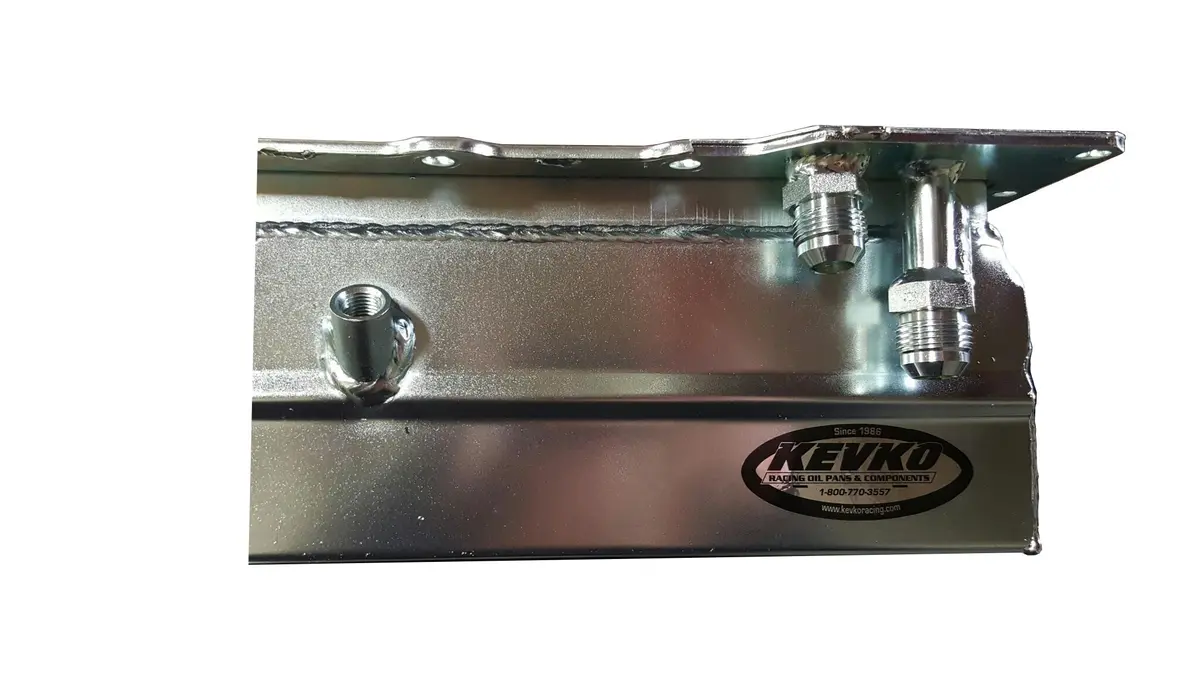

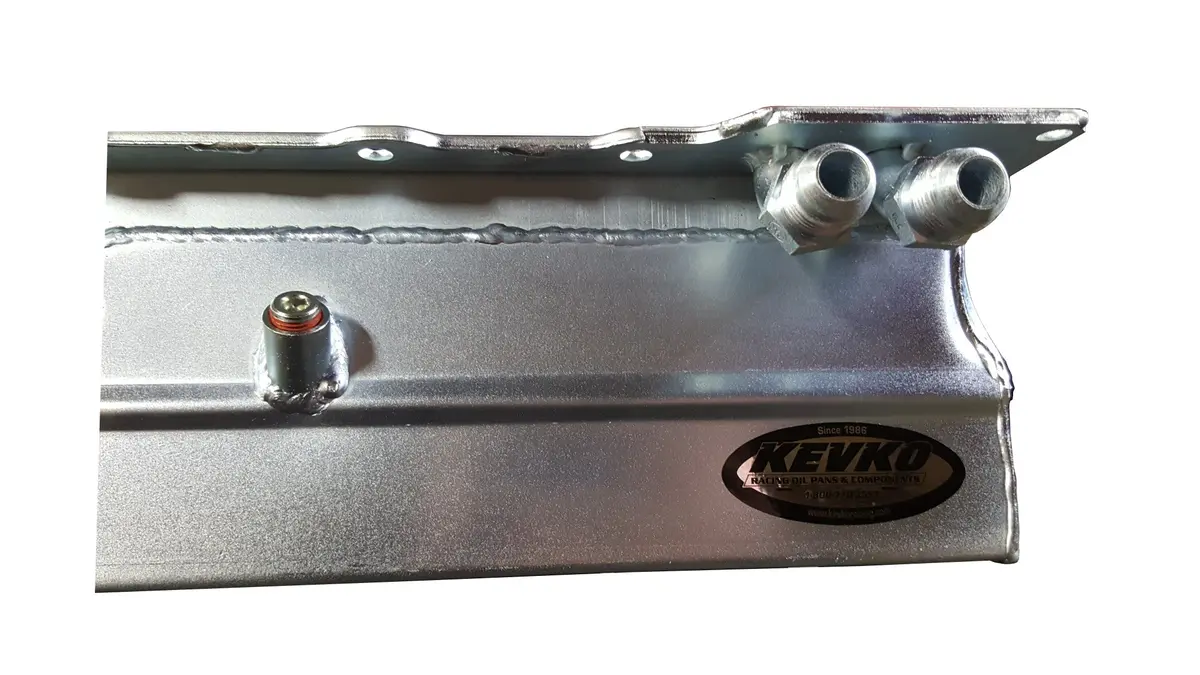

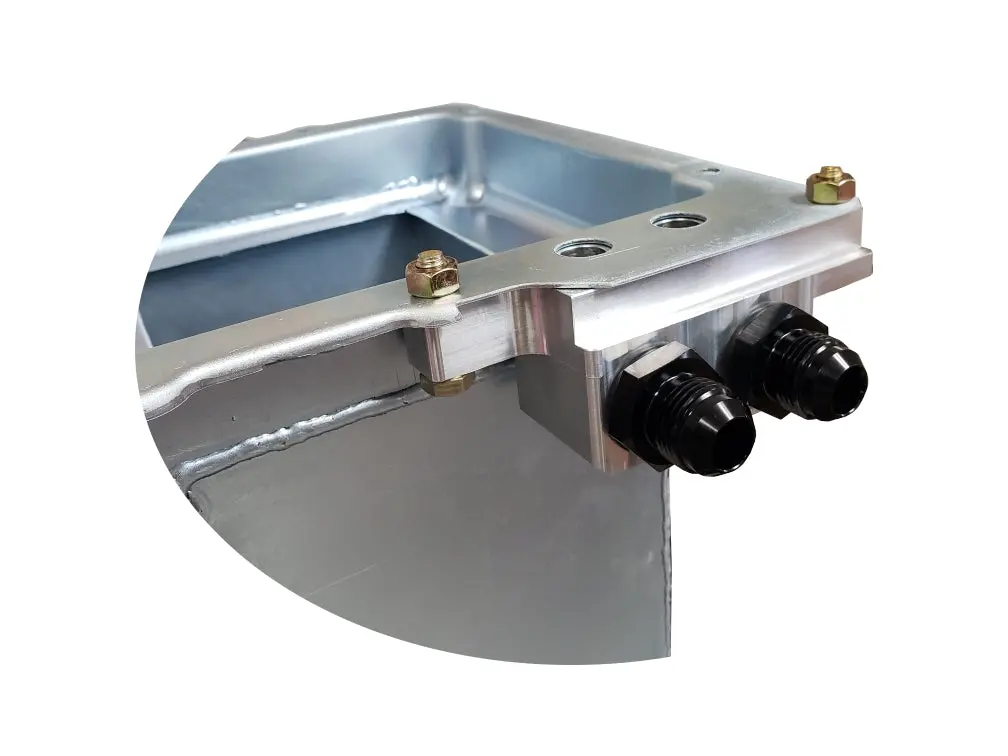

* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
**Click Here to View KIT Pricing**
Optional Accessories
| Part Number | Description | |
| LS1002-1 | 5″ Pickup Tube With New O-ring | ADD |

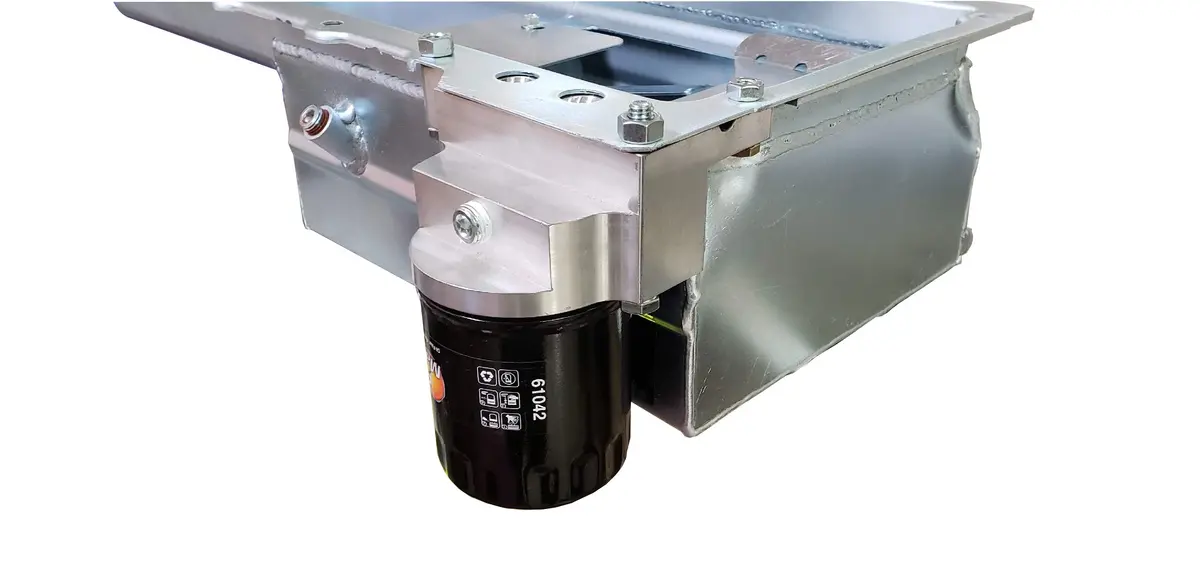

| K129 | Remote Filter Adapter | ADD |
| 51515 | Wix Oil Filter | ADD |
| K122-10-10 | 10′ Foot of Parker High Temp Hose | ADD |
| PHD-ST-10 | #10 Push Lock-Straight | ADD |
| PHD-45D-10 | #10 Push Lock-45 Degree | ADD |
| PHD-90D-10 | #10 Push Lock-90 Degree | ADD |
| PHD-180D-10 | #10 Push Lock-180 Degree | ADD |
| OS30963 | LS Victor Reinz Oil Pan Gasket | ADD |
| K9034 | LS Motor Mounts | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
