Description
Pan Depth: 4.5″
Pan Capacity: 9 Quarts (8.5 Liters)
System Capacity: 10 Quarts (9.5 Liters)
Description: 16″ Long, 12″ Wide, 4.5″ Deep Rear Sump. 1-3/4″ Front Depth.

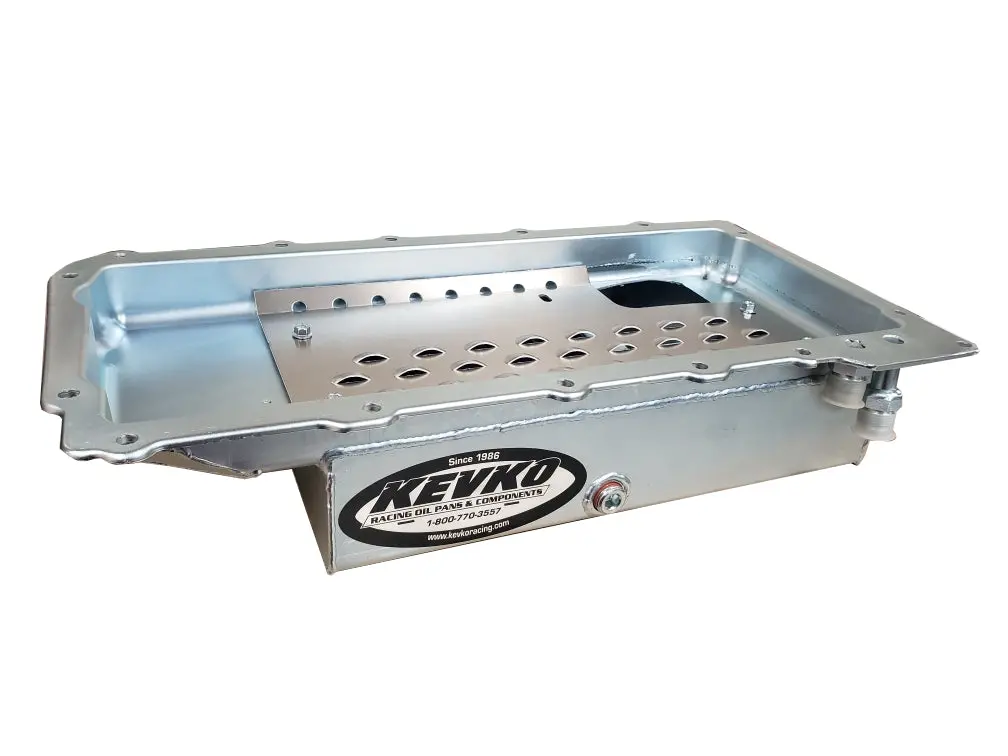

LS Oil Pan designed for low ground clearance. This pan has a louvered windage tray that works in conjunction with stock GM tray, 6 trap doors for very good oil control. The left front corner has been notched for steering interference. It comes standard with 2 #10 AN remote oil filter fittings, oil temperature port and a level plug.
Optional Accessories
| Part Number | Description | |
| LS1006-1 | 4.5″ Pickup Tube With New O-ring | ADD |
| K129 | Remote Filter Adapter | ADD |
| 51515 | Wix Oil Filter | ADD |
| K122-10-10 | 10′ Foot of Parker High Temp Hose | ADD |
| PHD-ST-10 | #10 Push Lock-Straight | ADD |
| PHD-45D-10 | #10 Push Lock-45 Degree | ADD |
| PHD-90D-10 | #10 Push Lock-90 Degree | ADD |
| PHD-180D-10 | #10 Push Lock-180 Degree | ADD |
| OS30963 | LS Victor Reinz Oil Pan Gasket | ADD |
| K9034 | LS Motor Mounts | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
