Description
Pan Depth: 5″
Pan Capacity: 9 Quarts (8.52 Liters)
System Capacity: 10 Quarts (9.46Liters)

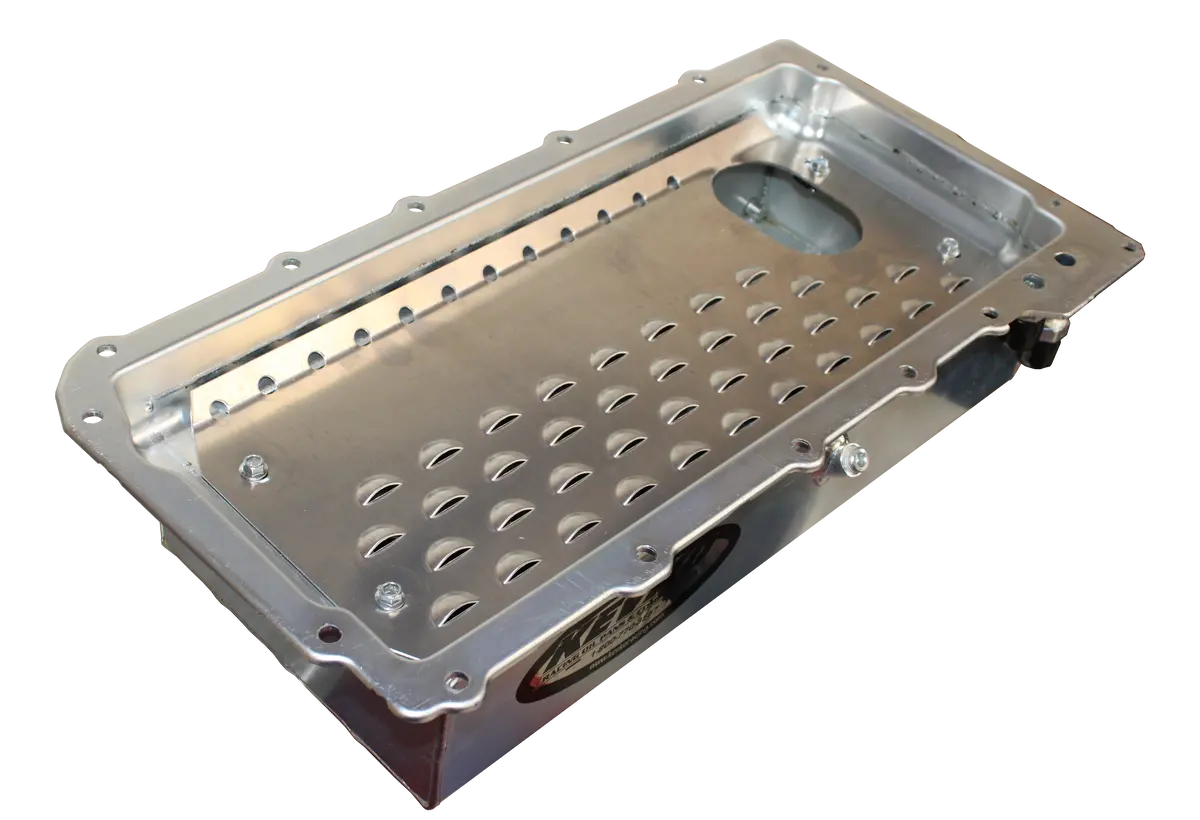

Description: 19.5″ Long, 8-3/8″ Wide, 5″ Deep Rear Sump

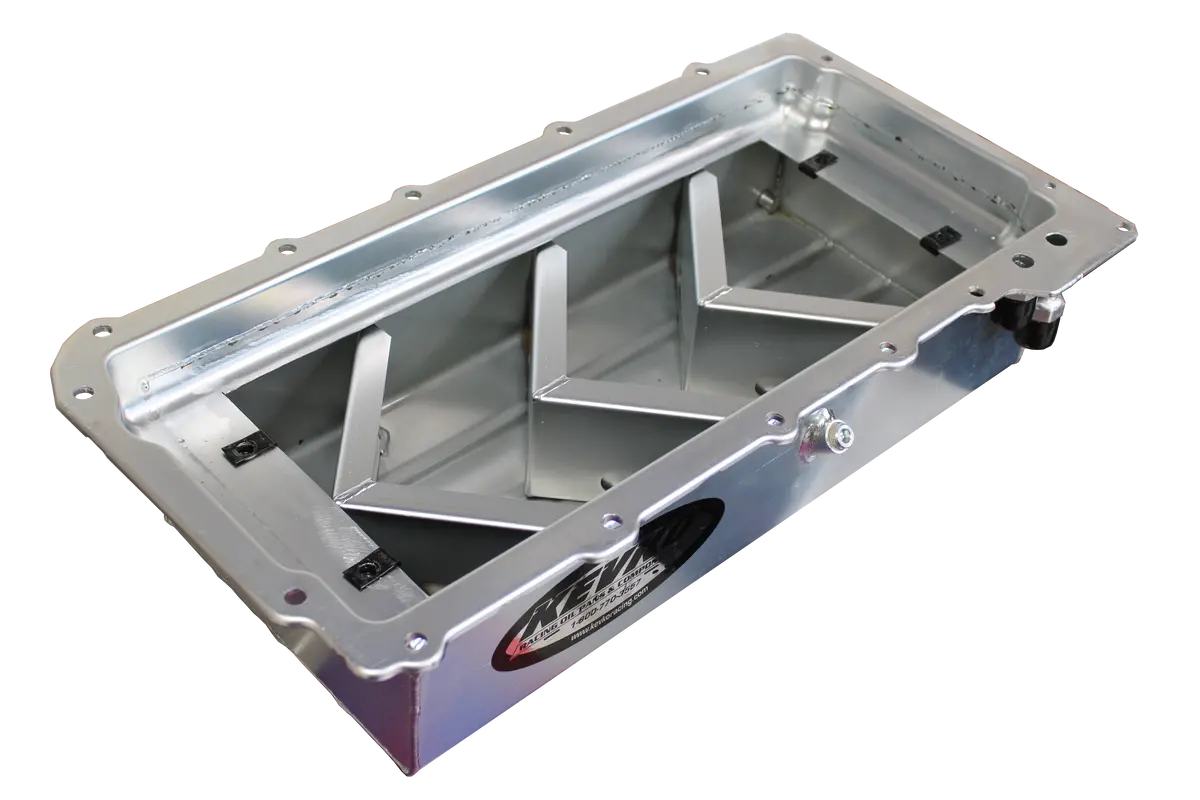

Designed for extreme use in Drag Racing or Marine applications. Features 3 V Gates each with 2 trap doors keeping your oil at the back of the sump at all times for excellent oil control when needed the most.
K137 Bolt kit and K128 Dip-stick are included with the purchase of the Pan. You will need to purchase Kevko pickup tube: LS1008-1 separate, as well as any other accessories listed below that you might need to complete your install.
* Front Fitting is Pressure out (to filter), Rear Fitting is the Return line.
Optional Accessories
| Part Number | Description | |
| LS1008-1 | 5″ Drag Pickup Tube With New O-ring | ADD |
| K129 | Remote Filter Adapter | ADD |
| 51515 | Wix Oil Filter | ADD |
| K122-10-10 | 10′ Foot of Parker High Temp Hose | ADD |
| PHD-ST-10 | #10 Push Lock-Straight | ADD |
| PHD-45D-10 | #10 Push Lock-45 Degree | ADD |
| PHD-90D-10 | #10 Push Lock-90 Degree | ADD |
| PHD-180D-10 | #10 Push Lock-180 Degree | ADD |
| OS30963 | LS Victor Reinz Oil Pan Gasket | ADD |
| K9034 | LS Motor Mounts | ADD |
| DP-1M | Magnetic Drain Plug | ADD |
